This is a interpretation of the talk on architecture for flow.

The Elevator Pitch #

  • Goal - How to build adaptive, socio-technical systems optimized for continuous change and feedback? Cause we know changes are constant.
  • How - The way to do that is, to be efficient (building systems well, be good at building) and to be effective (building the right system, solving the actual problems and providing value). For that we need to align Tech Strategy, Architecture, and Team boundaries.
  • What -
    • There are 3 tools introduced to help implement this efficiency and effectivity.
      • Wardley Maps - To understand and map you value chain
      • Domain Driven Design - To understand your boundaries, opportunity to reuse (modularize) and choose appropriate investment strategy (Build, buy, outsource).
      • Team Topologies - To properly design the organization and the team’s boundaries.
    • She introduces the Architecture For Flow Canvas where she designs an opinionated approach that combines these 3 tools to reach the stated goal.
  • In general
    • Optimize for of sustainable value
    • Enable fast and constant feedback
    • Be adaptive to rapid changes.

The Tools #

Warley Maps #

  • A 2 dimensional graph with
    • The x-axe being Evolution (With the main areas Genesis, Custom-Built, Product/Rental, Commodity)
    • The y-axe being Value Chain (with the scale from Invisible to Visible to the end user)
  • The idea is that you draw from the top, the most visible part (for your end user) of the value chain.
    • This can start with a certain functionality, using application X, hosted on platform Y, running on infrastructure Z, ending with the physical data-center China (the least visible to the end user).
    • As you have drawn the value chain, you can move each item horizontally given component, module, feature, capability based on their evolution.
      • Is this commodity? (like a virtual machine) - Put it all the way right.
      • Is this genesis? (Like your IP, value proposition, unique) - Put it all the way left.
  • Note that over time the position on the x-axe (evolution) is expected to evolve over time. It’s the evolution dimension after all. New things need to be custom built if it’s a differentiator, but as the landscape matures and available tools, given capability could be switch from custom-built to COTS.

Domain Driven Design #

See also Domain Driven Design, but a quick overview of what is relevant for this talk:

  • A business has a Business Domain.
  • The business domain exists out of subdomains types (Core, Supporting, Generic)
  • based on the subdomains types, you might make an investment strategy (Core subdomain you build as it’s a differentiator, generic should be outsourced…)
  • Any subdomain can be broken down in one or more Bounded Contexts.
  • The Business Domain describes your Problem Space and your Subdomains your Solution Space.
  • A bounded context can identify reusable / modular parts of the domain.

Team Topologies #

We are covering Team Topologies already extensively.

Architecture For Flow Canvas #

Through 7 steps, the canvas helps you map the as-is of your organization and then the to-be state.

1. Analyzing Current Teams #

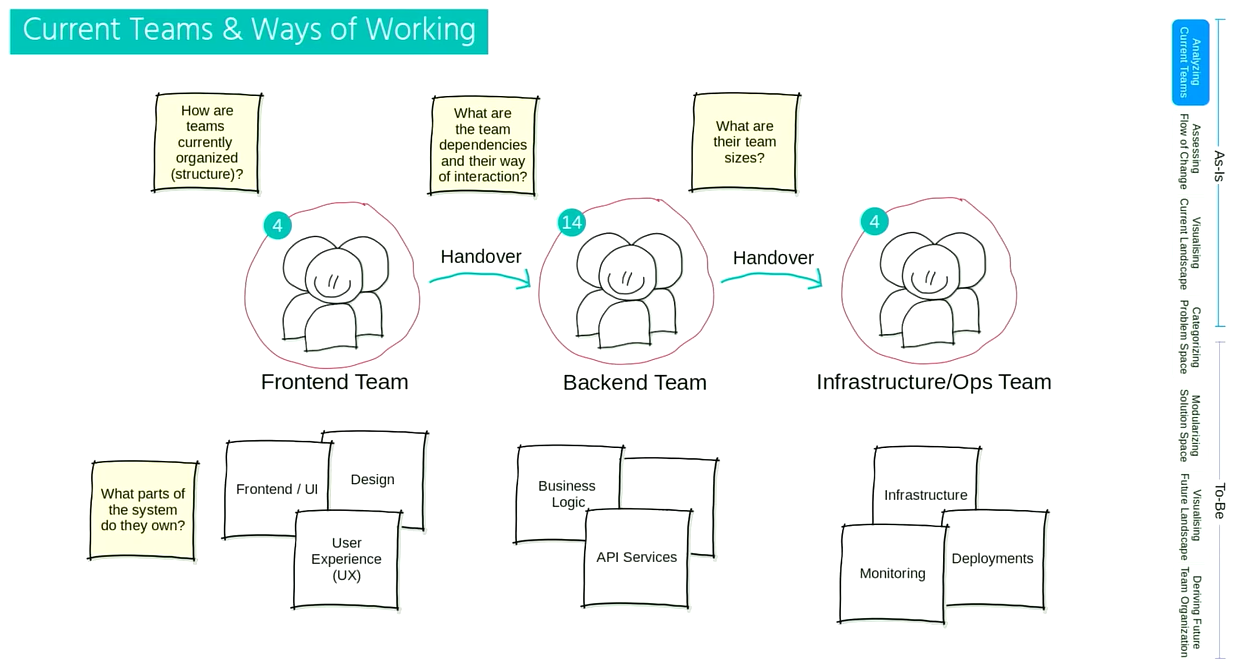

  • Slide Step 1
  • Analyze:
    • How are teams currently structured (size, boundaries types, …)?
    • What are the dependencies and interactions between teams.
    • How do these teams work together (Like a separate Dev and Ops).

2. Assessing Flow Of Change #

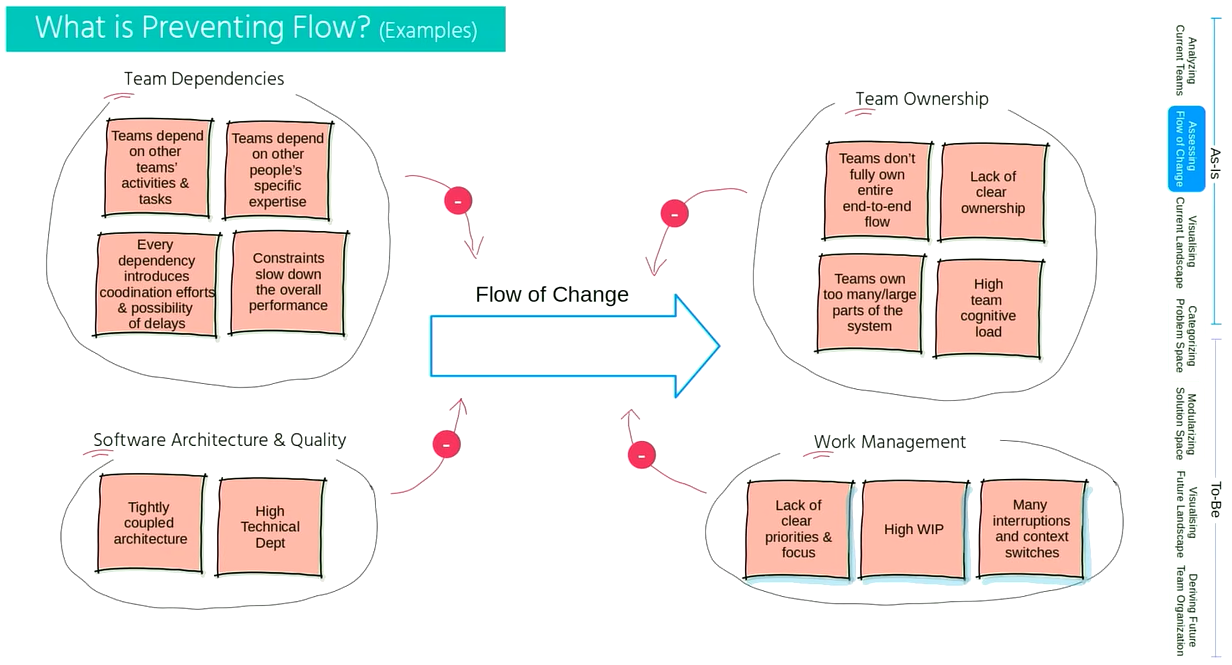

  • Slide Step 2
  • What is preventing flow of changes? Causes are usually one of the following origins:
    • Team Dependencies
      • Depending on others to do a task or activity
      • Depending on other people’s specific expertise
      • Every dependency comes with overhead
      • Constraints slow down overall performance
    • Team Ownership
      • Not owning entire e2e flow
      • Lack of ownership clarity
      • Too big of scope
      • High cognitive load
    • Software Architecture & Quality
      • Tightly coupled architecture
      • High technical depth
    • Work Management
      • Lack of clear priorities
      • High WIP
      • Many interruptions and context switches

3. Visualizing Current Landscape #

  • Slide Step 3
  • Note: Here we introduce *Wardley Mapping for the first time.
  • Mapping the current landscape using Wardley Mapping
    • Start on top with the Problem Space, the suggested approach to articulate this is using the Jobs To Be Done (but other methodologies exist).
      • This makes sense, cause the Jobs To Be Done are the most visible part to the end user.
    • Now follow up with the Solution Space, where you describe all components/systems that implements these Jobs to Be Done. This will be further down cause this becomes more invisible to the end user.
    • Eventually located the components/systems accordingly on the evolution axe.
  • Now ask yourself:
    • What to invest in? (Should something be more custom-built, or COTS)
    • What to evolve? (Can this be a COTS or else internal reusable component?)

4. Categorizing Problem Space #

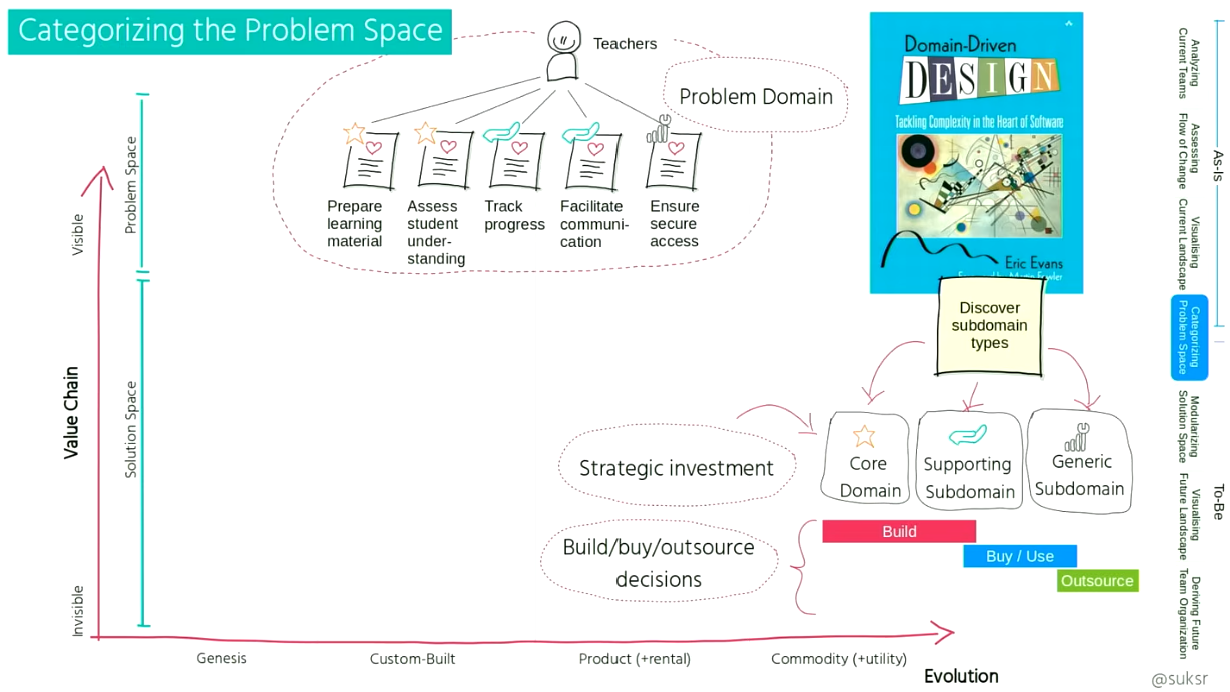

  • Slide Step 4
  • Note: Here we introduce *Domain Driven Design for the first time.
  • Categorize everything in your Problem Space to either a Core, Supporting, or Generic subdomain.
    • Based on this you can decide if given area should be build (differentiating), Buy/Use or outsourced (e.g. accounting).

5. Modularizing Solution Space #

  • Slide Step 5
  • Modularize everything in your Solution Space by decomposing into bounded contexts:
    • Group related behavior together
    • Enforce high cohesion and modularity
    • Serve as well-defined ownership boundaries
  • Available techniques: Event Storming, Domain Storytelling, Example mapping, User story Mapping, …

6. Visualizing Future Landscape #

  • Slide Step 6
  • Analyze the modularized solution spaces and bounded contexts and move components/context across the evolution axe accordingly.
    • Focus major development investments on differentiators
    • Close efficiency gaps by using standardized commodities (e.g. Cloud)
    • Modular, well-encapsulate, loosely coupled architecture.

7. Defining Future Team Organization #

  • Now you have designed your solution space to a TO BE state.
  • Use the Team Topologies and the reverse conway maneuver to design an organization that fits the defined future landscape.

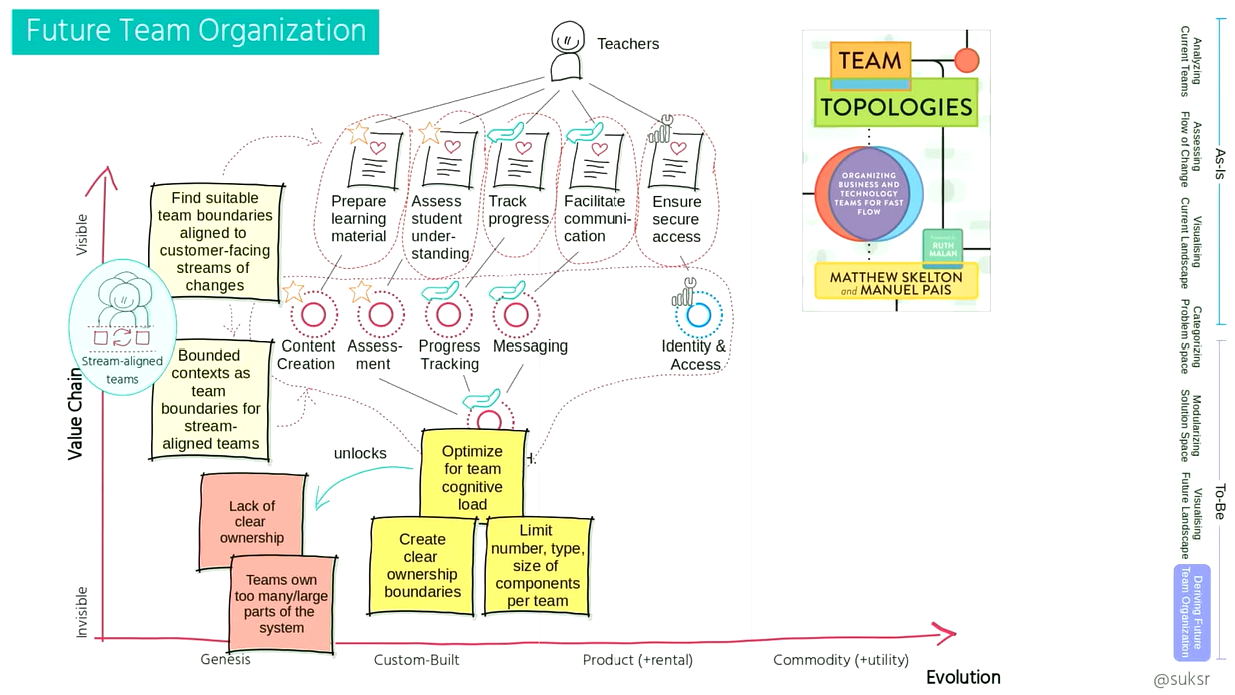

    • Value Stream Teams - Slide Step 7_1
      • Find suitable team boundaries aligned to customer-facing streams of changes.
      • Bounded contexts as team boundaries for stream aligned teams.
      • Optimize for team cognitive load
      • Create clear ownership boundaries
      • Limit number, type, size of components per team (scope).

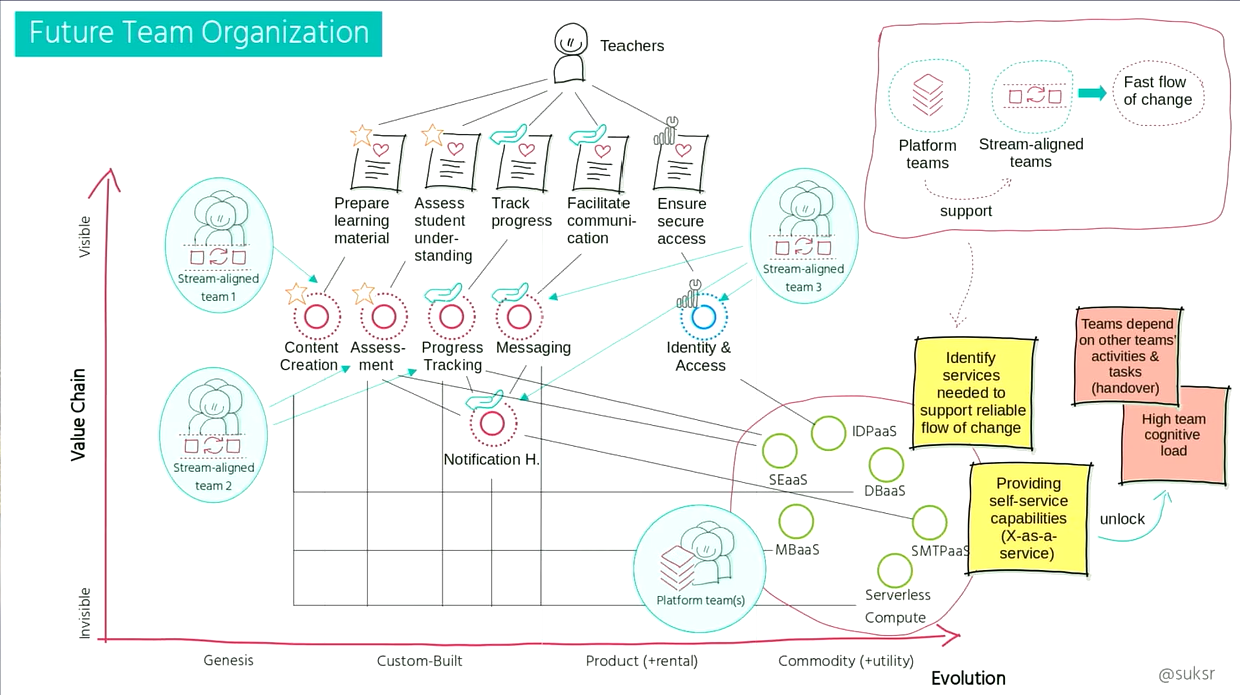

    • Platform Teams - Slide Step 7_2_1
      • They support stream aligned teams to have a fast flow of change
      • Identify services needed to support reliable flow of change
      • Providing self-service capabilities (x-as-a-service)

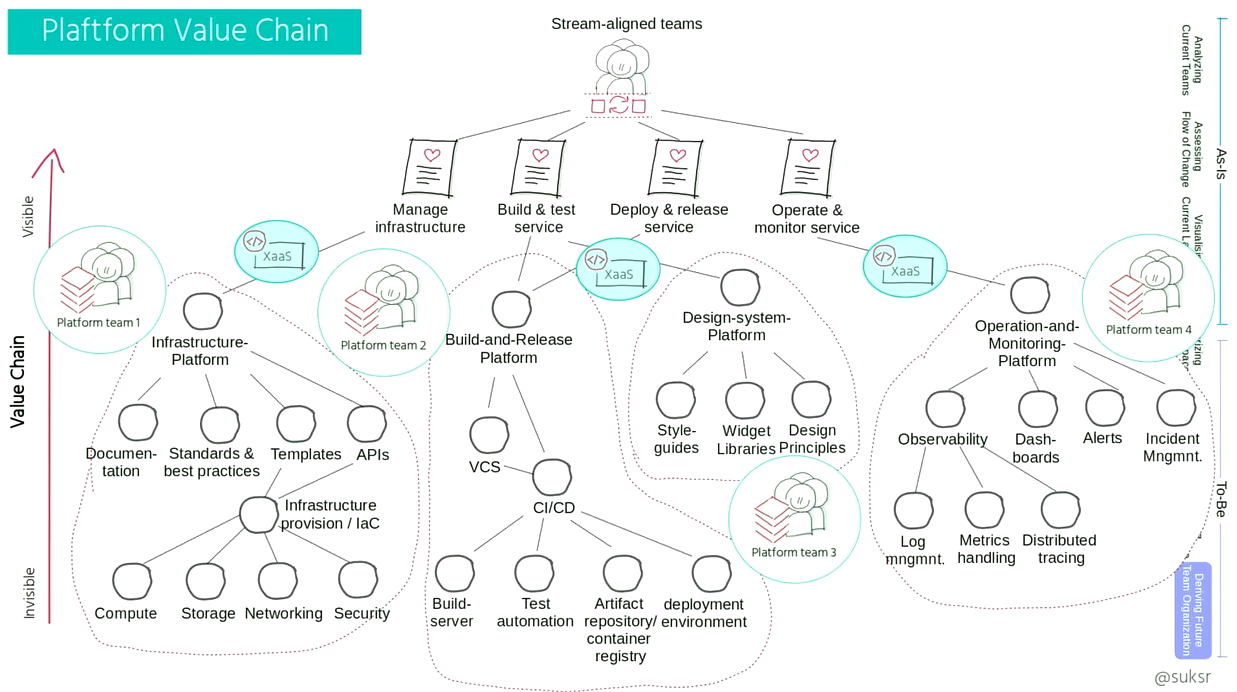

      • You can use the same Wardley Map to analyze how to create platforms. Here the end user is the value stream team instead of the customer.

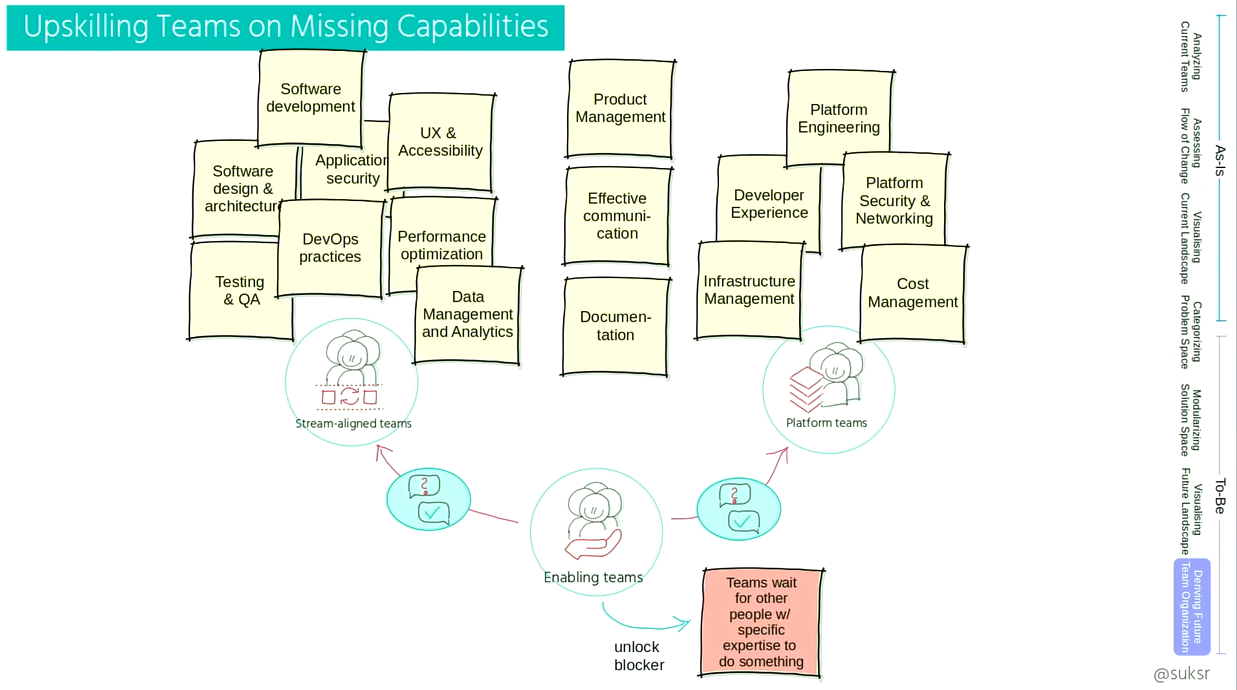

    • Enabling Teams - Slide Step 7_3
      • Help Value Stream and Platform teams to upskill on missing capabilities. This unblocks teams to wait on someone with a certain expertise.
      • Examples
        • Software Development
        • UX & Accessability
        • Software design & architecture
        • Testing & Q&A
        • DevOps Practices
        • AppSec
        • Data and analytics
        • Product management
        • Effective communication
        • Documentation
        • Platform engineering
        • DevEx
        • Infra management
        • Cost Management
        • …
  • Unlocking blockers to flow, in summary a bit - Slide Step 7_4
    • Modular well encapsulated, loosely coupled architecture with bounded context.
    • Focus major development investments on differentiators with discovered subdomain types.
    • Closing efficiency gaps by using standardized commodities.
    • Bounded-contexts serve as well defined ownership boundaries.
    • Optimize for team cognitive load.
    • Cross-functional, autonomous, stream-aligned teams & platform teams providing self-services.
    • Enabling teams as internal mentor, coaches to upskill teams

Critique / Remarks #

This seems to take in account a single learning loop. So it allows to get better and more efficient towards a given product and end goal. But what about the changing needs for customers? Changes is business and domain ? How do you innovate on a larger scale here? Something that goes across existing bounded contexts and subdomains. The second learning loop is at least not explained here.
